Shapes are graphical components designed to visualize data, elements of the control system, and more. They can essentially be divided into two categories: static and dynamic. Static shapes do not display data and are not the focus of this chapter. They are used to indicate an element that is part of the process, but there is no dynamic data for monitoring and animation. Dynamic shapes are the primary source of information on a display. They represent data and important events such as alarms and more. Simple svg elements and AngularJS directives are the basic building blocks that determine the composition, configuration and functionality of the shape. The functionality can then be further customized using JavaScript. Each shape can be used multiple times in a display to visualize different data sources.

Introduction

The shape creation process begins in the Media Library, which can be accessed via the Media link in the admin Dashboard.

The Media Library is the place where all shapes are built and configured. The following image represents the layout of the page as well as the different options that it provides.

(1) Import external shape files.

(2) Edit the name of the selected folder.

(3) Create a new folder.

(4) Create a new shape file.

(5) Filter through files based on file type and order them based on title or recent status.

(6) Available directories that contain media files.

(7) Available (created/imported) shape files.

(8) Test Stand (allows shapes to be tested outside of displays).

(9) Meta data for the selected shape file.

(10) Edit the Content Item of the shape.

(11) Open the shape file in the SVG Editor (this is where the graphical part and configuration of the shape are created).

(12) Delete the selected shape/s.

The shape creation process begins by selecting a directory (6) in which the new shape files will be created. The target directory will be highlighted upon selecting it with the left mouse button. A new shape file can then be created by pressing the Create Shape button, which will allow the user to provide a name for the new shape. Pressing the Save button will create the new shape file in the selected directory.

The next step in the creation of a shape is to construct its graphical (or visual) part and provide a configuration that will determine the features it will include and the data it will represent. This process is explained in detail in the next section.

Graphical part

The graphical (visual) aspect of the shape is what the user sees when data is being presented on the page. This part of the shape also contains a configuration, which allows the user to implement different features and determines the point data that will be presented on the page. The process of building the graphical part is done in the SVG Editor.

The graphical part of the shape is comprised of basic svg elements and custom directives that are provided by SmartWEB. The directives can be split into two separate categories. The first category of directives will be referred to as Base Components. These are pre-built components with specific behaviour. They are intended to be used as building blocks in the construction of the shape, as they provide specific functionality and can be used multiple times in a single shape. Example of such Base Components are the Alphanumeric,
the Parameter Container, the Alarm Basic, the Indicator Bar, and many more. The other type of directives that are used in shape building are the directives that are combined with basic svg elements or groups of elements. This category of directives will be referred to as Directives, located in the Directives Tab in the element Item Configuration panel. Basic svg elements that are intended to have dynamic behaviour are assigned the
Base Element directive. Elements such as these will be referred to as Base Elements.

Different shapes are built for different purposes. They represent different data and have different behaviours. The type of the shape is determined by the data that it has to represent. In this section we will go through the process of creating a shape with the help of an example.

Creating an example shape: Scada Data Acquisition

We will first need to create a shape file, as shown in the introduction section of this chapter, and open the file in the SVG Editor.

The first shape element we will create for this example is the "RecFrame" base element, which will act as the background for our shape. To do this, we will use the Rectangle option in the toolbar on the left, marked as (1) in the image below.

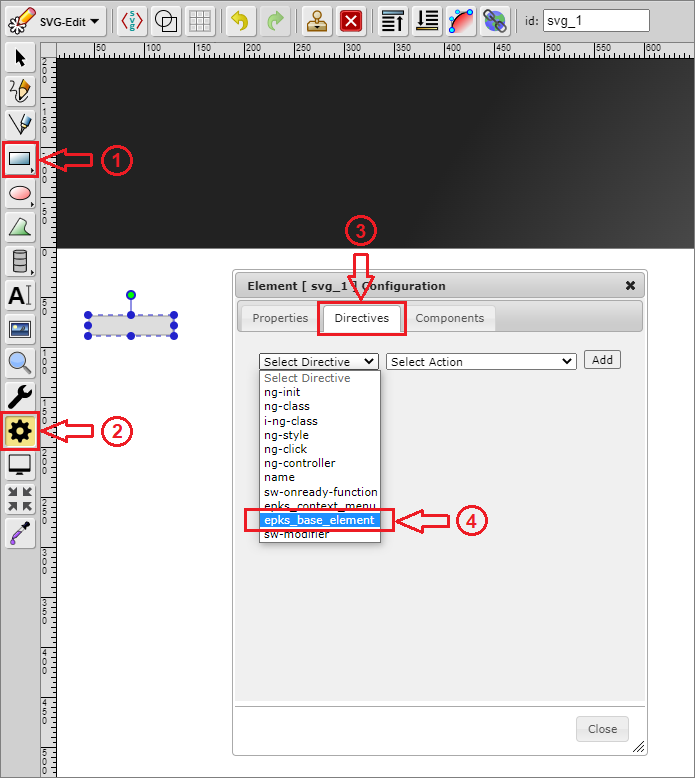

In order for this svg element to become a base element it needs to be assigned a Base Element directive from the Directives Tab in the Item Configuration panel. Steps (2), (3), and (4), shown in the image above, represent the process of selecting a directive.

• Step (2) - Item Configuration panel
• Step (3) - Directives Tab
• Step (4) - Base Element directive

Once the directive is selected, the appropriate action needs to also be selected from the adjacent drop-down list. Clicking the Add button will then assign the directive to the svg element and it will become visible in the Directives Tab. In this case, the directive we used will allow us to provide the Base Element with an appropriate name, as shown in the image below.

The next step in the creation of our example data acquisition shape will require the use of

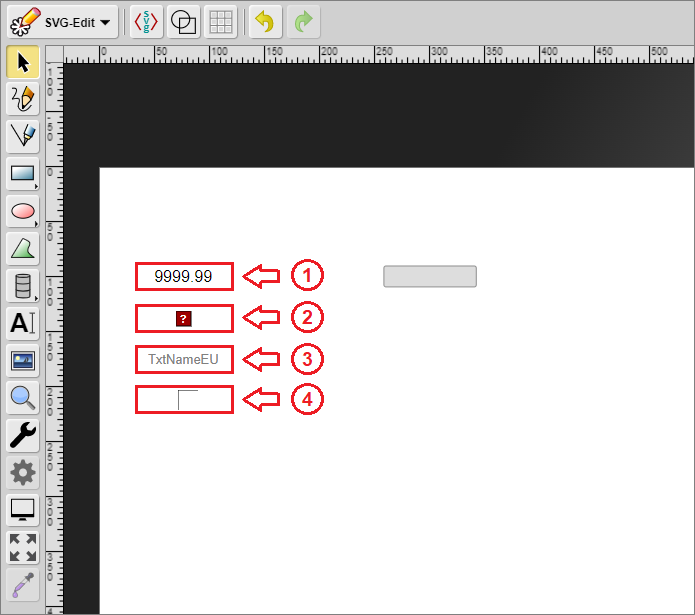

Base Components. In this case we will use the following four components:

• Alphanumeric (1)
• Alarm Basic (2)
• TxtNameEu (3)
• Custom Selection Box (4)

The components and elements can be moved around and arranged to achieve the required design. After this is done they need to be grouped. This is achieved by selecting the elements/components (step (1) in the image below) and grouping them with the Group Elements button (step (2) in the image below).

The body of our example data acquisition shape is now formed. The next step is to configure it. The configuration will determine the features that the shape provides as well as the behaviour that will represent data changes. The shape has its own Item Configuration panel, comprised of three different tabs.

• Properties Tab (1) - enables the user to assign a data source for each base component that requires data, and provides advanced options for the shape (this tab becomes available after the shape is implemented in a display)
• Directives Tab (2) - enables the user to assign directives to the shape that provide various functionalities
• Components Tab (3) - enables the user to configure each base component

For now, we will turn our attention to the Directives Tab and the Components Tab, because they are relevant to the shape creation process. The first part of the configuration begins in the
Directives Tab. Our example shape will contain three directives, which are present in the majority of shape designs:

• ng-init (1) - enables the initialization of data parameters as variables
• epks_context_menu (2) - provides a context menu with various options
• name (3) - provides a name attribute for the shape

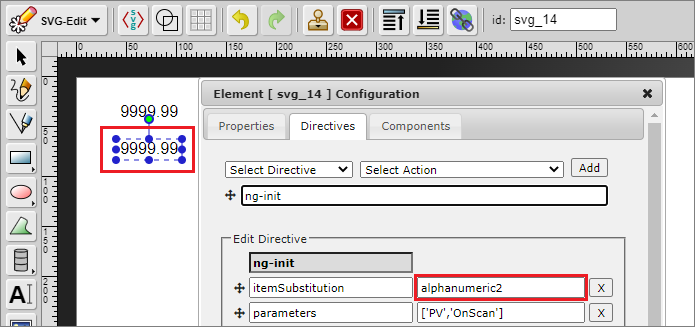

The ng-init directive initializes the point parameters which the shape will represent as variables that can be used by the shape's base components and scripts.

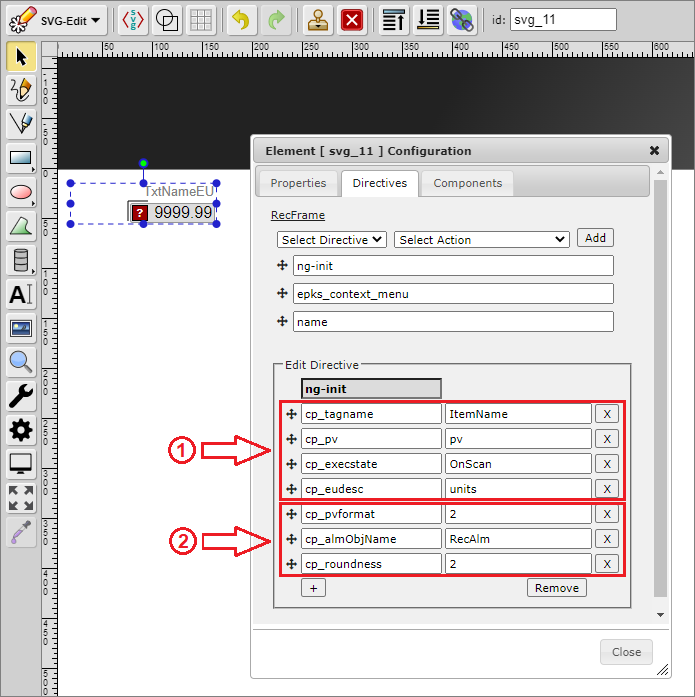

The image below represents the custom parameters for our example data acquisition shape. Each row consists of two columns. The first column contains the variable name, while the second column contains the point parameter, the value of which will be used by the base components and the shape script. In this case, as shown in the image below, the first four variables (1) will be used by the base components directly. They will not be used in our script because the base components have built-in behaviour which will represent the data without external logic. The other three variables (2) will be used in our script, because they will allow our shape to have additional behaviour that is not handled by a base component.

The following image represents the custom parameters after they have been added to

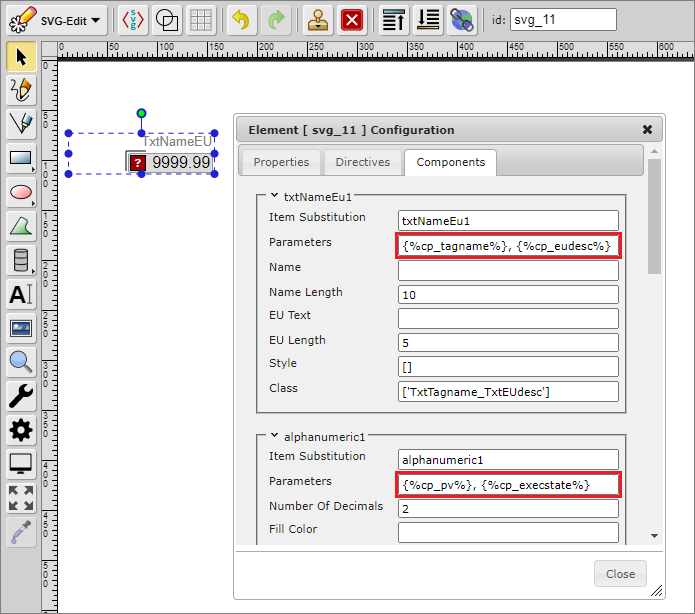

base components. The parameters are specified in a specific way (syntax). They must be surrounded by curly brackets { } and a percent sign % - {%parameter%}. Assigning a point parameter to a custom parameter (ng-init variable) also provides flexibility in cases where multiple components use the same point parameter. Changes to the custom parameter in the Directives Tab will result in changes in all base components that use that parameter.

The epks_context_menu and name directives will not be explained in this chapter. Visit the HMI Editor Mastering chapter for more information on directives.

Calling the shape-specific script is the last step in the configuration process. It enables the user to implement custom behaviour and and functionality for the shape by calling a custom JavaScript function. The function call itself is done with the help of specific base components or with the help of specific directives.

Examples of base components that allow functions to be called:

• Alphanumeric
• Parameter Container
• Indicator Bar
• User Input

Each of these components contains a Function field that will call the custom function when there is new data (on an on-update event) or when a specific event is triggered. This field has a specific syntax that begins with square brackets [ ]. The data between these brackets is in JSON format. The first property (action) defines the action that, when triggered, will call the function. The second property (function) defines the name of the function that will be called.

After the graphic part has been constructed and configured, the shape needs to be saved. The Save button is located under the editor, as shown in the image below:

Custom Functions

Custom functions are a vital part of the shape creation process. They determine the way the data is processed and presented. Essentially, they determine the behaviour of the shape.

Custom functions in SmartWEB are written in JavaScript (.js), with additional functionality provided by jQuery and AngularJS. The files containing the scripts are located in the following directory:

..\inetpub\SmartWeb\Modules\Smartsys.OpcXmlDa\Scripts

All custom functions must be created as methods for the epksCustomFunctions object.

epksCustomFunctions.Scd_DataAcq_Example_OnUpdate = function () {

}

Individual shape behaviour is based on the shape configuration (shape parameters).

The data that the scripts access can be divided into two categories:

• dynamic data that is obtained from EPKS point parameters through OPC XML Providers
• static data that is obtained from custom variables (ng-init)

EPKS data (point parameters etc.) can be accessed with the use of base components. When a parameter is added to a base component - each time an on-update event occurs the EPKS value for that parameter will be updated in SmartWEB. The value can then be accessed with the help of specific functions.

The following function will return an object that includes the value of the EPKS parameter as well as other properties. If the parameter does not exist, the returned value will be Null:

var base_component_name = "alphanumeric1";
var parameter = "cp_pv";
this.DataValueObj(base_component_name, parameter);
/*
we want the js object for the cp_pv parameter,
which was added to the alphanumeric1 base component
*/

Returned object:

ChildItem: "pv"
ClientItemHandle: "0_alphanumeric1_2"
ContinuousParameter: true
ItemName: "OPC.Server./ASSETS/SS_TEST/SS01/DATAACQS_SCADA.pv"
ItemPath: ""
OPCError: false
OPCErrorText: null
ParentItem: "alphanumeric1"
Quality: "good"
SnapshotParameter: false
Timestamp: "2022-06-24T16:32:23.5016762+03:00"
Usable: true
ValueType: "double"
value: "12"
valuesArray: [{…}]

The following function will return the value of the EPKS parameter. If the parameter does not exist, the returned value will be Null:

var base_component_name = "alphanumeric1";
var parameter = "cp_pv";
this.DataValue(base_component_name, parameter);
/*
we want the EPKS value for the cp_pv parameter,
which was added to the alphanumeric1 base component
*/

Returned value:

'12'

Static data (ng-init variables) can be accessed by using the regular JavaScript square brackets property access syntax:

var parameter = this["cp_pv"];
/*
we want the value of the ng-init variable, not the EPKS parameter value
*/

Returned value for "parameter":

'pv'

Accessing different svg elements is vital for providing dynamic behaviour for the shape. The following function will return a specified element, which can then be altered by the code:

var base_element_name = "RecFrame";
this.GetObject(base_element_name);

Returned element:

-> jQuery.fn.init [rect.r500.hmiclassic.recframe, prevObject: jQuery.fn.init(1), context: g#svg_4]
/*
the result is a jQuery selector that contains the different properties of the element
*/

The scope that the shape script has access to is the scope of the component that it was called from. In some cases, scopes of other components need to be accessed in order to achieve the desired shape behaviour. To do so, the following function can be used:

var base_component_name = "alphanumeric1";
this.GetScope(base_component_name);

Returned scope object:

-> ChildScope {$$childTail: null, $$childHead: null, $$nextSibling: ChildScope,
$$watchers: Array(7), $$listeners: {…}, …}
/*
the object that is returned contains a multitude of properties
from the scope of the desired component
*/

In terms of styling (.css), the following four SmartWEB functions are available:

var base_element_name = "RecFrame";
var base_element = this.GetObject(base_element_name);

SetClass(base_element, css_class);
/*clears all currently applied classes and sets a new css_class*/

AddClass(base_element, css_class);
/*applies a css_class if it is not already applied*/

RemoveClass(base_element, css_class);
/*removes a css_class*/

RemoveAllClasses(base_element);
/*removes all applied css_classes*/

Additionally, jQuery (or vanilla javascript) can be used:

var base_element_name = "RecFrame";
var base_element = this.GetObject(base_element_name);

/*sets the value of a css property of the base element*/
$(base_element).css(css_property, property_value)

/*sets a value of an attribute of the base element*/
$(base_element).attr(attr_name, attr_value)

$(base_element).text(new_text)
/*sets the text of a element <text>*/

The following two basic examples of shape scripts represent the common uses for the functions and methods explained above. The first example will change the state of a shape (fan) based on data. It is intended to represent the general idea behind the behaviour of discrete shape types (pumps, motors, louvers, fans etc.).

epksCustomFunctions.Discrete_Fan_OnUpdate = function () {
    var pvObj = this.DataValueObj("parameterContainer", "cp_pv");
    var base_element = this.GetObject("OvlBody");

     if (this.CommError || this.ForbiddenError) {
          $(base_element).css("fill", "#0000ff");
          /*
          Indicates that there is a communication or forbidden error.
          */
     } else if (!pvObj || (!pvObj.value && pvObj.value != 0) ||
                               pvObj.Quality.indexOf("bad") == 0) {
          $(base_element).css("fill", "#000000");
          /*
          Indicates that the quality of the data is bad.
          */
     } else {
          $(base_element).css("fill", this["cp_styleForPV" + pvObj.value] ?
                                        this["cp_styleForPV" + pvObj.value] : "");
          /*
          The above line of code provides colors for, in this case, states 1, 2 and 3, if they exist:
          cp_styleForPV1 = "#808080"
          cp_styleForPV2 = "#c0c0c0"
          cp_styleForPV3 = "#ffffff"

          Any other states that do not have colors provided for them in the ng-init
          will not be indicated, and the shape will return to its default color
          (the color it was initially given in the SVG editor).
          */
     }
}

Script Results:

A slightly different approach is used when theming is required. The most common way to manipulate a base element that supports theming is to use a variable that is added as a parameter for the ApplyNgTheme() function in the i-ng-class directive.

Example: ApplyNgTheme(cp_ovlBodyClass)

The variable can then be accessed in the code, which will allow the custom function to change the class of the element in regard to the state, while the process of changing the class in regard to the theme will be done automatically. In this case, the function above will be written the following way:

epksCustomFunctions.Discrete_Fan_OnUpdate = function () {
    var pvObj = this.DataValueObj("parameterContainer", "cp_pv");
    var base_element = this.GetObject("OvlBody");

     var opt = this.$parent;
     if (this.CommError || this.ForbiddenError) {
          if (opt["cp_styleForCommError"]) {
               opt["cp_ovlBodyClass"] = "OvlBody_" + opt["cp_styleForCommError"];
          }
     } else if (!pvObj || (!pvObj.value && pvObj.value != 0) || pvObj.Quality.indexOf("bad") == 0) {
          if (opt["cp_styleForBad"]) {
               opt["cp_ovlBodyClass"] = "OvlBody_" + opt["cp_styleForBad"];
          }
     } else {
          if (opt["cp_styleForPV" + pvObj.value]) {
               opt["cp_ovlBodyClass"] = "OvlBody_" + opt["cp_styleForPV" + pvObj.value];
          }
     }
}

In this version of the script, the styles are applied through classes. The existence of the required class variable is checked. If it exists, the code tries to apply a class that consists of a prefix (OvlBody_ in this case) and the value of the variable.

The next example will showcase how to access the scope of other base components. This technique is usually done in shapes that have some sort of analog data presentation, but there may be exceptions. The shape that the following script belongs to has two Alphanumeric components (alphanumeric1 and alphanumeric2). The function is called from alphanumeric2, which is important because the execution of each base component is done one after the other. This means that if the function is called on a previous component and tries to change something in the one after it, the code of the function will be overwritten by the built-in code of the next component. The task of the next example is to get the scope of alphanumeric1 and change the value, in this case - double it.

epksCustomFunctions.Analog_OnUpdate = function () {
     var value = this.DataValue("alphanumeric1", "cp_pv");
     /*
     Get the current value of alphanumeric1
     */
     var scope = this.GetScope("alphanumeric1");
     /*
     Get the scope of alphanumeric1
     */

     scope.SetValue(parseFloat(value)* 2);
     /*
     We are doubling the value by accessing a function
     that is unique to the alphanumeric component.
     */
}

Example shape script: Scada Data Acquisition

As a final example for this chapter, we will create the custom function for our example data acquisition shape. This is a production-grade shape used at a professional level. Most of the functionality in this case is handled by the built-in code of the base components. Formatting the value and providing an alarm frame for the shape is the only additional behaviour required.

epksCustomFunctions.Scd_DataAcq_Example_OnUpdate = function () {
    epksCustomFunctions.UpdateByTextPvFormat_r500(this, this["cp_pvformat"]);
    /*modular function that formats the value*/

    var recAlm = this["cp_almObjName"];
    var roundness = this["cp_roundness"];
    /*custom parameters that are required by the function below*/

    if (recAlm) {
        epksCustomFunctions.UpdateRecAlarm(this, recAlm, null, roundness);
        /*modular function that creates the alarm frame for the shape*/
    }

};

The text formatting is done with the help of a modular function, which accepts the scope of the component that must be modified as well as a number that will determine how many numbers after the decimal point are shown. In this case, the number is obtained through a static
value in the ng-init directive (this["cp_pvformat"]).

The alarm frame of the shape is created with the help of another modular function. The parameters it receives are the scope of the component that called the function, the this["cp_almObjName"] parameter that will determine if an alarm frame is required, the ItemSubstitution (optional), and the this["cp_roundness"] parameter that will determine the roundness of the alarm frame (optional).

---

Summary

In this chapter we have discussed in detail how to create HMI shapes in SmartWEB using the built-in SVG editor and JavaScript code that animates the graphical elements based on data supplied by Data Providers. Shapes created in this way become part of the system's shape libraries and can be reused for building HMI displays. For more information see HMI Editor Mastering chapter, which describes how to work with the built-in graphical editor. Another valuable resource is the chapter HMIWeb to SVG, which explains how to automatically convert DCS operator graphics to SmartWEB graphics pages.
